G2130 BOLT TYPE ANCHOR SHACKLES

Nominal

Size

Working

Load

Limit

Weight

Each

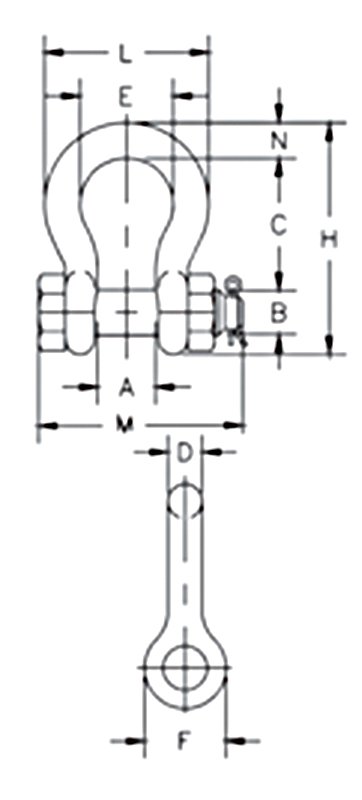

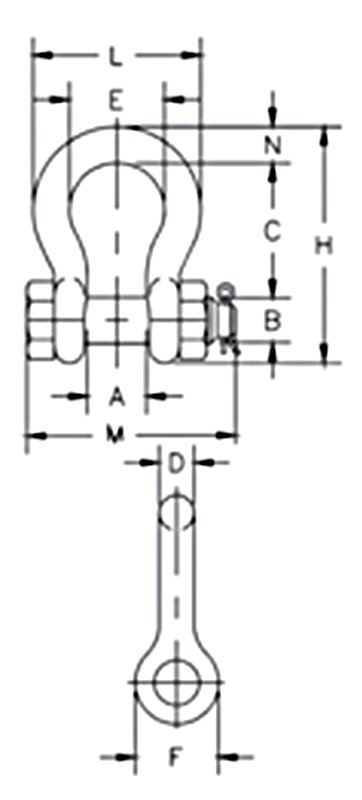

Dimensions

(in)

Tolerance

(+ / - in)

A

B

C

D

E

F

H

L

M

N

C

A

1/2

2

.79

.81

.63

1.88

0.50

1.31

1.19

3.29

2.30

2.80

0.50

0.13

0.06

5/8

3.25

1.37

1.06

.75

2.38

0.63

1.69

1.50

4.18

2.94

3.56

0.69

0.25

0.06

3/4

4.75

2.71

1.25

.88

2.82

0.75

2.01

1.81

4.96

3.51

4.15

0.81

0.25

0.06

7/8

6.5

3.95

1.44

1.00

3.31

0.88

2.29

2.09

5.83

4.02

4.82

0.97

0.25

0.06

1

8.5

5.03

1.69

1.10

3.76

1.00

2.70

2.38

6.58

4.69

5.39

1.06

0.25

0.06

1-1/8

9.5

8.27

1.81

1.25

4.26

1.13

2.92

2.70

7.49

5.16

5.90

1.25

0.25

0.06

1-1/4

12

11.7

2.03

1.38

4.69

1.25

3.25

2.99

8.27

5.75

6.69

1.38

0.25

0.06

1-3/8

13.5

15.8

2.25

1.50

5.24

1.38

3.62

3.31

9.18

6.38

7.21

1.50

0.25

0.13

1-1/2

17

19.0

2.38

1.63

5.75

1.50

3.88

3.62

10.0

6.90

7.73

1.62

0.25

0.13

Nominal

Size

 Working

Load Limit

Weight

Each

Dimensions

(in)

Tolerance

(+ / - in)

A

B

C

D

E

F

H

L

M

N

C

A

3/16

0.33 ‡

.06

.38

.25

.88

.19

.60

.56

1.47

.98

1.29

.19

.06

.06

1/4

0.5

.11

.47

.31

1.13

.25

.78

.61

1.84

1.28

1.56

.25

.06

.06

5/16

0.75

.22

.53

.38

1.22

.31

.84

.75

2.09

1.47

1.82

.31

.06

.06

3/8

1

.33

.66

.44

1.44

.38

1.03

.91

2.49

1.78

2.17

.38

.13

.06

7/16

1.5

.49

.75

.50

1.69

.44

1.16

1.06

2.91

2.03

2.51

.44

.13

.06

1/2

2

.79

.81

.64

1.88

.50

1.31

1.19

3.28

2.31

2.80

.50

.13

.06

5/8

3.25

1.68

1.06

.77

2.38

.63

1.69

1.50

4.19

2.94

3.56

.69

.13

.06

3/4

4.75

2.72

1.25

.89

2.81

.75

2.00

1.81

4.97

3.50

4.15

.81

.25

.06

7/8

6.5

3.95

1.44

1.02

3.31

.88

2.28

2.09

5.83

4.03

4.82

.97

.25

.06

1

8.5

5.66

1.69

1.15

3.75

1.00

2.69

2.38

6.56

4.69

5.39

1.06

.25

.06

1-1/8

9.5

8.27

1.81

1.25

4.25

1.13

2.91

2.69

7.47

5.16

5.90

1.25

.25

.06

1-1/4

12

11.71

2.03

1.40

4.69

1.29

3.25

3.00

8.25

5.75

6.69

1.38

.25

.06

1-3/8

13.5

15.83

2.25

1.53

5.25

1.42

3.63

3.31

9.16

6.38

7.21

1.50

.25

.13

1-1/2

17

19.00

2.38

1.66

5.75

1.53

3.88

3.63

10.00

6.88

7.73

1.62

.25

.13

1-3/4

25

33.91

2.88

2.04

7.00

1.84

5.00

4.19

12.34

8.80

9.68

2.25

.25

.13

2

35

52.25

3.25

2.30

7.75

2.08

5.75

4.81

13.68

10.15

10.81

2.40

.25

.13

2-1/2

55

98.25

4.13

2.80

10.50

2.71

7.25

5.69

17.90

12.75

13.58

3.13

.25

.25

3

† 85

154

5.00

3.30

13.00

3.12

7.88

6.50

21.50

14.62

15.13

3.62

.25

.25

3-1/2

† 120 ‡

265

5.25

3.76

14.63

3.62

9.00

8.00

24.88

17.02

17.00

4.38

.25

.25

4

† 150 ‡

338

5.50

4.26

14.50

4.00

10.00

9.00

25.68

18.00

17.75

4.56

.25

.25
