G210 SCREW PIN CHAIN ANCHOR SHACKLES

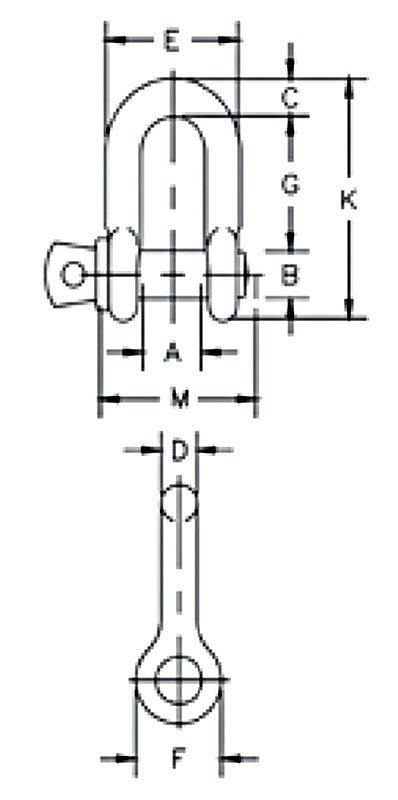

A

B

C

D

E

F

G

K

L

M

G

A

1/4

0.5

.11

.47

.31

.25

.25

.97

.62

.97

1.59

.19

1.43

.06

.06

5/16

0.75

.17

.53

.38

.31

.31

1.15

.75

1.07

1.91

.22

1.71

.06

.06

3/8

1

.28

.66

.44

.38

.38

1.42

.92

1.28

2.31

.25

2.02

.13

.06

7/16

1.5

.43

.75

.50

.44

.44

1.63

1.06

1.48

2.67

.31

2.37

.13

.06

1/2

2

.59

.81

.63

.50

.50

1.81

1.18

1.66

3.03

.38

2.69

.13

.06

5/8

3.25

1.25

1.06

.75

.63

.63

2.32

1.50

2.04

3.76

.44

3.34

.13

.06

3/4

4.75

2.63

1.25

.88

.81

.75

2.75

1.81

2.40

4.53

.50

3.97

.25

.06

7/8

6.5

3.16

1.44

1.00

.97

.88

3.20

2.10

2.86

5.33

.50

4.50

.25

.06

1

8.5

4.75

1.69

1.13

1.00

1.00

3.69

2.38

3.24

5.94

.56

5.13

.25

.06

1-1/8

9.5

6.75

1.81

1.25

1.25

1.13

4.07

2.69

3.61

6.78

.63

5.71

.25

.06

1-1/4

12

9.06

2.03

1.38

1.38

1.25

4.53

3.00

3.97

7.50

.69

6.25

.25

.13

1-3/8

13.5

11.63

2.25

1.50

1.50

1.38

5.01

3.31

4.43

8.28

.75

6.53

.25

.13

1-1/2

17

15.95

2.38

1.63

1.62

1.50

5.38

3.62

4.87

9.05

.81

7.33

.25

.13

1-3/4

25

26.75

2.88

2.00

2.12

1.75

6.38

4.19

5.78

10.97

1.00

9.06

.25

.13

2

35

42.31

3.25

2.25

2.36

2.10

7.25

5.00

6.77

12.74

1.13

10.35

.25

.13

2-1/2

55

71.75

4.12

2.75

2.63

2.63

9.38

5.68

8.07

14.85

1.38

13.00

.25

.25
